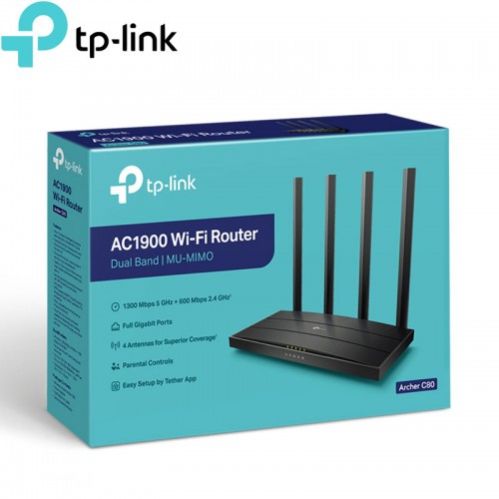

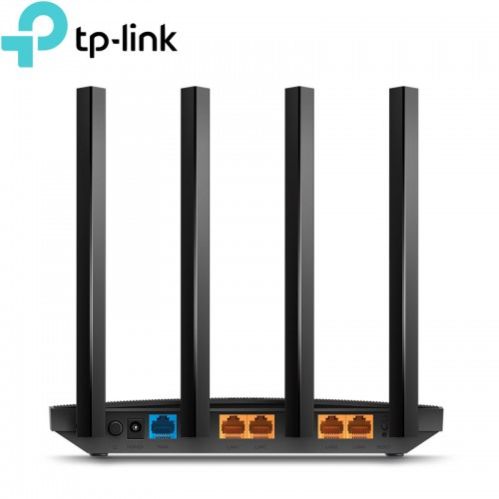

TP-LINK ARCHER C80 AC1900 WIRELESS MU-MIMO WI-FI 5 ROUTER
Archer C80 AC1900 Wireless MU-MIMO Wi-Fi 5 Router Ultra-Fast Dual-Band Speeds: Experience smooth 4K/HD streaming and intense online gaming with speeds up to 1.9 Gbps (1900 Mbps - 600 on 2.4 Ghz and 1300 on 5 Ghz).†
$ 45.00
$49
(Inclusive of all taxes)
-
Compare
-
Share:
-
1 year
Warranty
-
6 Month Guarantee
-
COD Avilable
-
Returnable
-
cancelable
About this item
Archer C80
AC1900 Wireless MU-MIMO Wi-Fi 5 Router
Ultra-Fast Dual-Band Speeds: Experience smooth 4K/HD streaming and intense online gaming with speeds up to 1.9 Gbps (1900 Mbps - 600 on 2.4 Ghz and 1300 on 5 Ghz).†
More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer C80 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
Connect More Devices: Simultaneously communicate more data to more devices without slowing down using MU-MIMO technology.‡
Advanced WiFi Features: Smart Connect and Airtime Fairness ensure your devices are on the best available WiFi band while ensuring old devices don't slow you down.
Full Gigabit Ports: Create fast, reliable wired connections for your PCs, Smart TVs and gaming console with four LAN and one WAN ports (4x LAN and 1x WAN).
Parental Controls: Manage limit and monitor internet use with profiles that let you customize WiFi access for every person and device in your home.
Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
WIRELESS
Standards : Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range
3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
Medium
Dual-Band
Allocate devices to different bands for optimal performance
3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes
Router Mode
Access Point Mode
HARDWARE
Processor: 1.2 GHz CPU
Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power US Version
12 V ⎓ 1.5 A
SECURITY :
WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security :
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network :
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE :
Protocols IPv4 IPv6
Parental Controls :
URL Filtering
Time Controls
WAN Types:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Cloud Service:
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding:
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV:
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP:
Address Reservation
DHCP Client List
Server
DDNS:
TP-Link
NO-IP
DynDNS
Management:
Tether App
Webpage
Check Web Emulator>
PHYSICAL:
Dimensions (W×D×H) 8.5 × 4.6 × 1.26 in
(215 × 117 × 32 mm)
Package Contents:
Wi-Fi Router Archer C80
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER:
System Requirements
nternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA:
WiFi Transmission Power
FCC: <30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity:
5GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
Archer C80
AC1900 Wireless MU-MIMO Wi-Fi 5 Router
Ultra-Fast Dual-Band Speeds: Experience smooth 4K/HD streaming and intense online gaming with speeds up to 1.9 Gbps (1900 Mbps - 600 on 2.4 Ghz and 1300 on 5 Ghz).†
More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer C80 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
Connect More Devices: Simultaneously communicate more data to more devices without slowing down using MU-MIMO technology.‡
Advanced WiFi Features: Smart Connect and Airtime Fairness ensure your devices are on the best available WiFi band while ensuring old devices don't slow you down.
Full Gigabit Ports: Create fast, reliable wired connections for your PCs, Smart TVs and gaming console with four LAN and one WAN ports (4x LAN and 1x WAN).
Parental Controls: Manage limit and monitor internet use with profiles that let you customize WiFi access for every person and device in your home.
Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
WIRELESS
Standards : Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range
3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
Medium
Dual-Band
Allocate devices to different bands for optimal performance
3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes
Router Mode
Access Point Mode
HARDWARE
Processor: 1.2 GHz CPU
Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power US Version
12 V ⎓ 1.5 A
SECURITY :
WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security :
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network :
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE :
Protocols IPv4 IPv6
Parental Controls :
URL Filtering
Time Controls
WAN Types:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Cloud Service:
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding:
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV:
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP:
Address Reservation
DHCP Client List
Server
DDNS:
TP-Link
NO-IP
DynDNS
Management:
Tether App
Webpage
Check Web Emulator>
PHYSICAL:
Dimensions (W×D×H) 8.5 × 4.6 × 1.26 in
(215 × 117 × 32 mm)
Package Contents:
Wi-Fi Router Archer C80
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER:
System Requirements
nternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA:
WiFi Transmission Power
FCC: <30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity:
5GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
